The principle of combinatorial chemistry, or high-throughput synthesis, makes it possible to simultaneously multiply the reactions between molecules in order to obtain a compound database or chemical library more quickly.
It is therefore essential to be able to bring different chemical compounds together at the same time or under different reaction conditions. Hence the need for a multi-reactor screening tool.
Parallel synthesis proceeds from the same need, a saving of time and a differentiation of the compounds by carrying out several experiments simultaneously in order to quickly study the kinetics of a reaction under pressure.

• Product screening

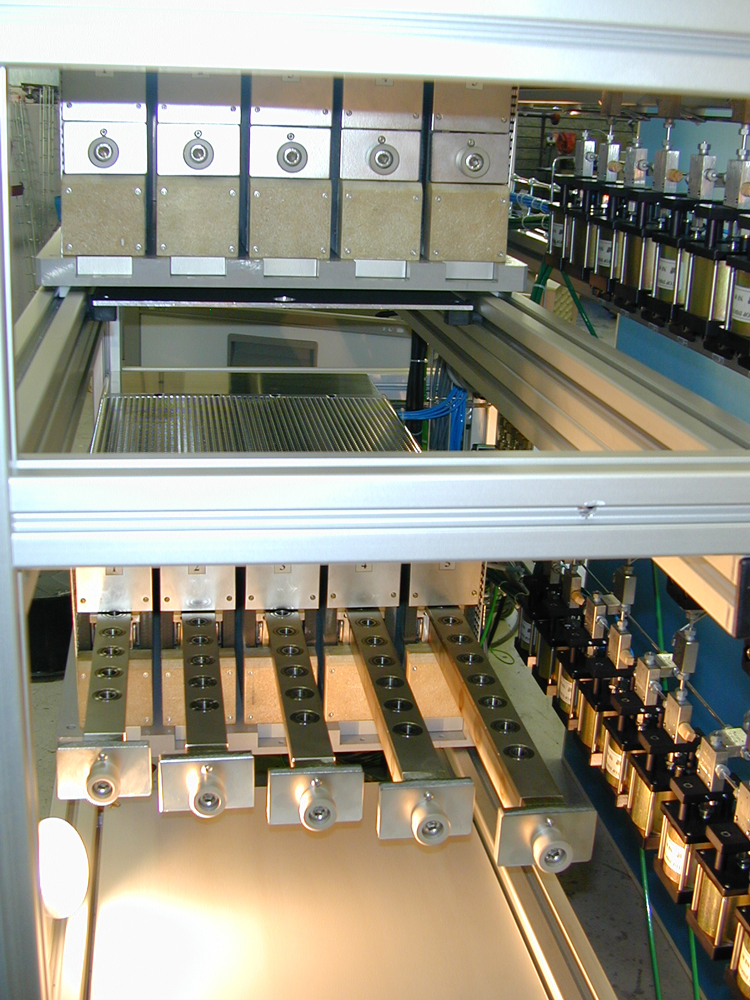

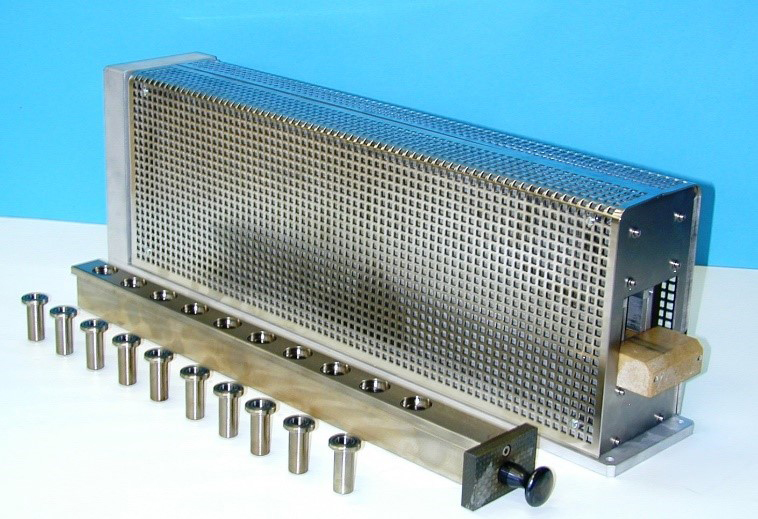

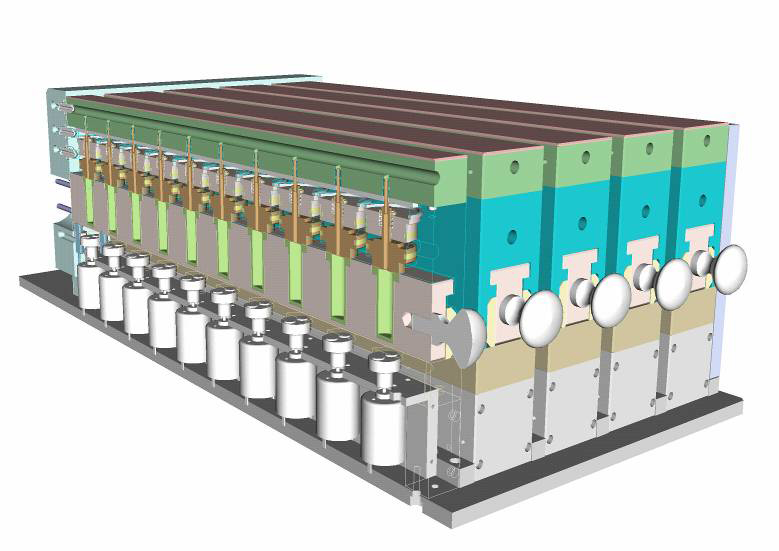

• Ramps of 10 autoclaves
• Up to 10 ramps
• Operating pressure: 100 bars
• Operating temperature: 200°C
• Rapid cooling
• Introduction of reactive gases
• Numerous options are available: mixture preparation and automatic sampling, filtration and compression of the solids obtained.

Download the PDF data sheet

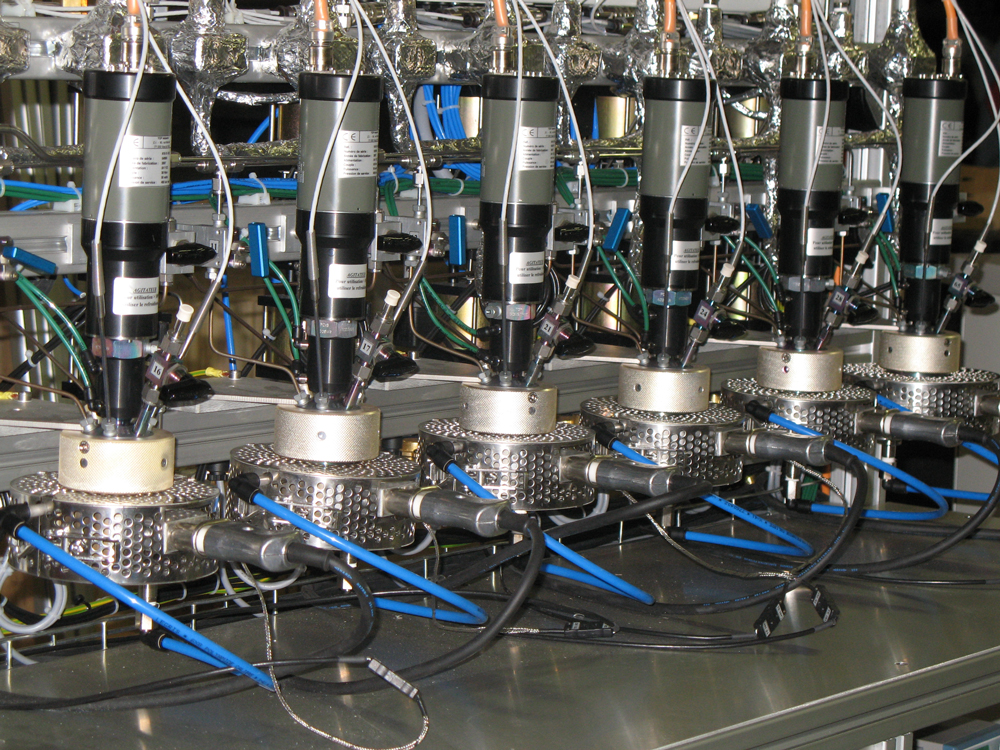

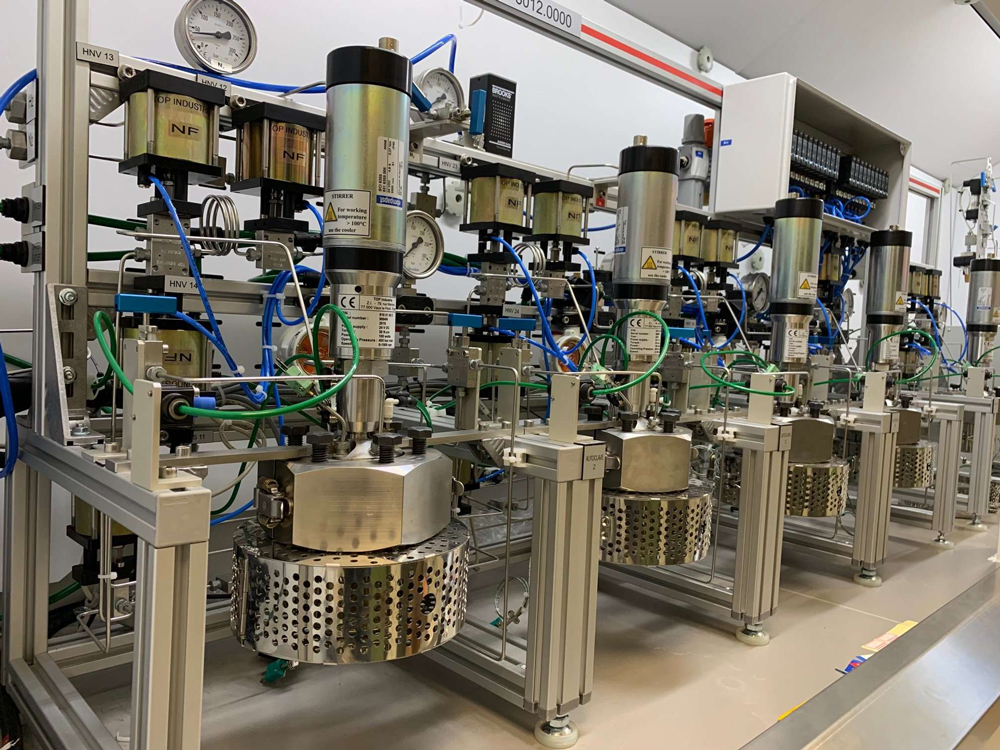

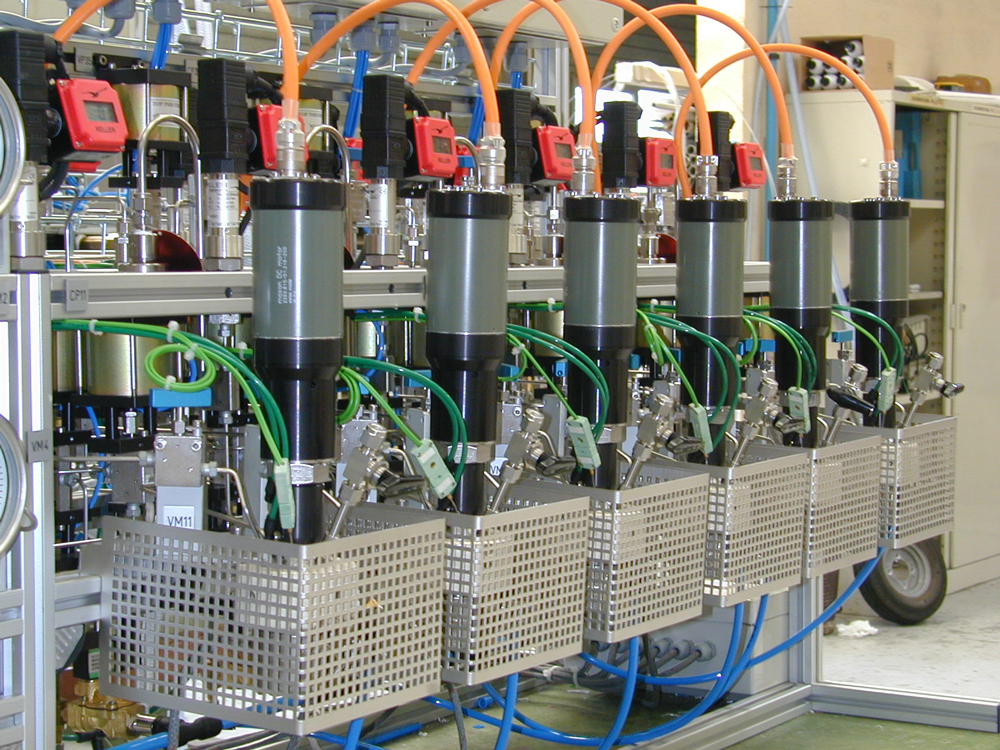

• Product and process screening
• Flexible, complete and automated systems
• From 2 to 8 reactors usable in // or with individual parameters (pressure, gas, temperature)
• Unit volumes from 15 ml to 1 liter
• Pressure up to 250 bar
• Temperature up to 250 °C
• Material: stainless steel, Hastelloy, Inconel...
• Numerous options and dedicated solutions: agitation, pressure regulation, heating, cooling, controlled injection, gas consumption measurement, automatic sampling....
• Supervision under LabVIEW.

Download the PDF data sheet
